Choosing the Right Caster Configuration for Plastic Poly Carts, Security Carts, and Box Trucks
When it comes to material handling and transport, selecting the right caster configuration for your plastic poly carts, security carts, and box trucks is crucial for efficiency, maneuverability, and overall ease of use. Casters are not just about making the cart mobile—they directly influence how a cart performs in real-world applications, whether it’s navigating tight spaces, covering long distances, or carrying heavy loads.
At Myton, we offer several caster configurations to meet the specific needs of different industries and environments. Let’s take a deeper dive into four popular caster configurations that we recommend for plastic poly carts, security carts, and box trucks.

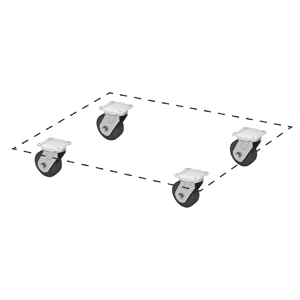

1. Four Swivel Corner Mount (Standard Configuration)
The Four Swivel Corner Mount configuration is the most common and versatile option we offer, making it ideal for a wide range of applications, particularly in confined or cluttered spaces.
In this setup, all four corners of the cart are equipped with swivel casters. This provides maximum maneuverability, allowing the cart to move easily in any direction, including sideways, which is perfect for tight, cluttered work areas or loading/unloading in and around production equipment.
Best for:
- Confined work areas or cramped spaces where flexibility and multi-directional movement are required.
- Staging carts under or around production equipment.
- Small to medium-sized carts with lighter loads.
Why choose this configuration?
- High maneuverability: With four swivel casters, the cart can pivot and turn in tight spaces, making it an ideal choice for small workstations or areas with limited room.
- Effortless movement: Under most applications with lighter loads, this configuration allows easy movement, even with less force, which is important when manually pushing carts in busy environments.
However, this configuration is less effective for long-distance travel, especially with heavier loads, as the cart can become more challenging to push in a straight line over time.

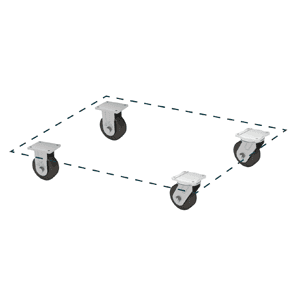

2. Two Swivel, Two Rigid Corner Mount
For applications that require long-distance travel in a straight line, such as moving carts down aisles, hallways, or corridors, the Two Swivel, Two Rigid Corner Mount setup is the go-to configuration.
In this setup, two swivel casters are mounted at the front of the cart, while two rigid (fixed) casters are placed at the rear. This provides excellent stability and ensures the cart moves in a straight line with minimal resistance.
Best for:
- Transporting carts over longer distances in a straight line (such as down long hallways, warehouses, or truck loading docks).
- Moving carts in and out of delivery trucks or staging areas with minimal effort.
- Applications requiring better control during transport, like truck loading, where wheel brakes on the swivel casters can prevent unwanted movement during transit.
Why choose this configuration?
- Straight-line travel: The rigid casters ensure the cart tracks straight, even over long distances, which is perfect for transporting goods from one area to another without requiring constant adjustments.
- Wheel brakes: Adding brakes to the swivel casters ensures additional stability during transport and while the cart is stationary, making this setup ideal for trucks or delivery vehicles where safety is paramount.
This configuration is typically best suited for applications where flexibility is not as critical, but long-distance stability and ease of pushing are more important.

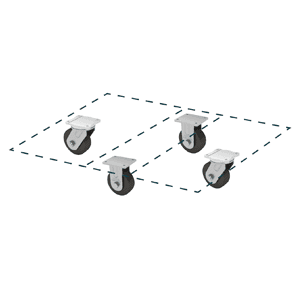

3. Diamond Pattern (Two Swivel, Two Rigid or Fixed)
The Diamond Pattern configuration, also known as the 4-caster diamond layout, provides the best of both worlds when it comes to maneuverability and handling. It uses two swivel casters at the front and rear of the cart, while two rigid or fixed casters are mounted at the midpoint, usually slightly higher than the swivel casters.
Best for:
- Light to medium loads where maximum maneuverability is needed.
- Navigating over floor obstacles such as cables, cracks, or thresholds.
- Long-distance travel, particularly in applications where the cart needs to maintain stability and smooth tracking.
Why choose this configuration?
- Maneuverability over obstacles: The slight tipping action provided by the fixed casters allows the cart to move more easily over floor irregularities, making it ideal for environments with uneven surfaces.
- Improved tracking: The diamond pattern ensures that the cart tracks well even over longer distances, which is a great benefit for handling lightweight loads with ease.
- Reduced resistance: Since the swivel casters are located at the front and rear, the cart is easy to steer in multiple directions.
However, for heavier loads, the diamond pattern may not provide the same level of stability as other configurations, and some tipping might occur when the cart is fully loaded.

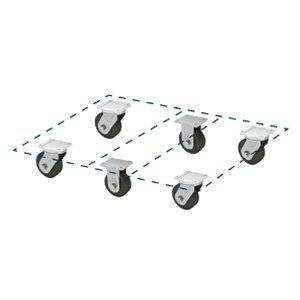

4. Six Caster Set (Heavy-Duty Configuration)
When extreme weight capacity is required, or when larger carts are involved, the Six Caster Set configuration comes into play. This setup involves four swivel casters mounted on the corners and two rigid casters placed at the midpoint of the cart, slightly raised to provide a slight tipping action for better navigation over obstacles.
Best for:
- Heavier loads or large carts that require additional support and maneuverability.
- Applications where the cart needs to move easily over floor irregularities such as cables, cracks, and thresholds.
- Large carts that require more casters for better weight distribution and overall stability.
Why choose this configuration?
- Increased load capacity: The addition of two more casters helps to distribute the weight of the load evenly, making it easier to transport large or heavy items.
- Improved maneuverability: Like the diamond pattern, the rigid casters allow the cart to move smoothly over obstacles and provide a tipping action for easier navigation.
- Enhanced stability: With six casters, this configuration provides much more stability when handling extremely heavy loads or larger carts.
However, for very light-duty applications, this configuration may be over-engineered, and a standard four-caster setup might be sufficient.
Conclusion
Choosing the right caster configuration is essential for optimizing the functionality and performance of your plastic poly carts, security carts, and box trucks. Whether you’re moving products in tight spaces or transporting heavy loads across long distances, selecting the right casters can enhance productivity, reduce strain, and make your material handling operations smoother and more efficient.
Myton Industries specializes in providing customizable caster solutions to meet your unique needs. Whether you need the high maneuverability of a Four Swivel Corner Mount or the stability of a Six Caster Set, we can help you choose the best configuration for your application. Contact us today to learn more about how we can help you optimize your cart and truck systems with the perfect caster setup!
